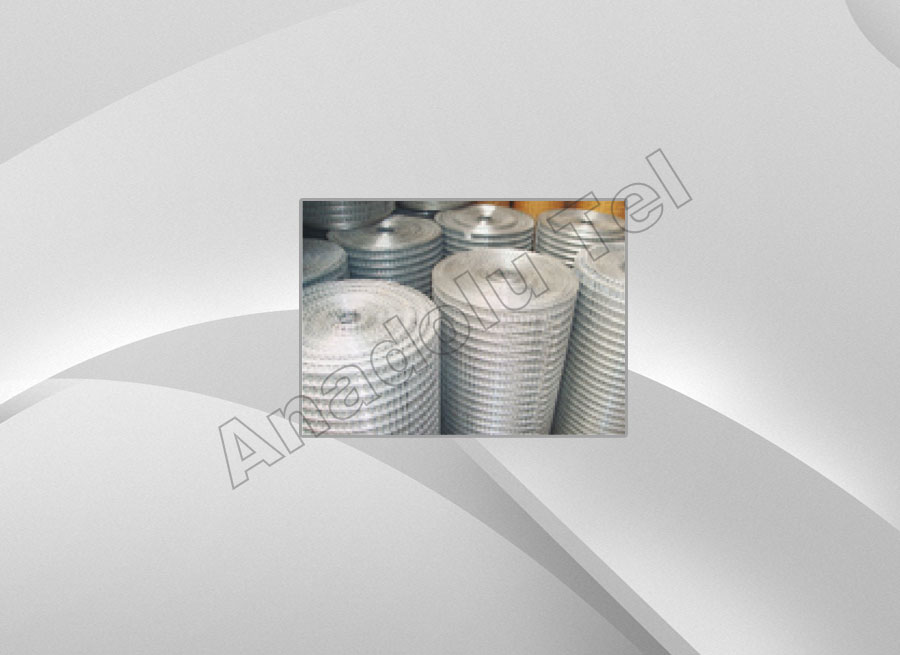

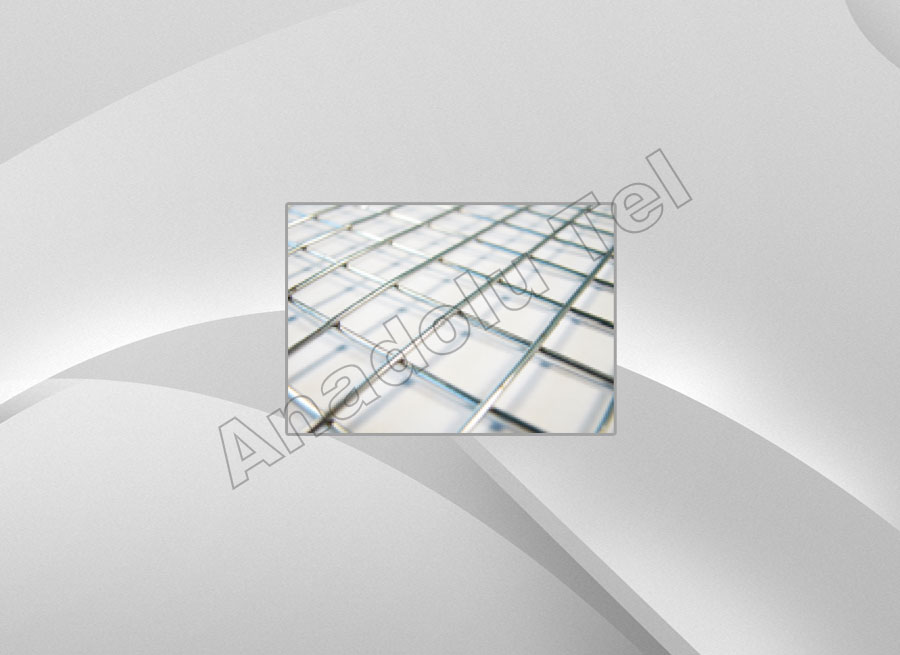

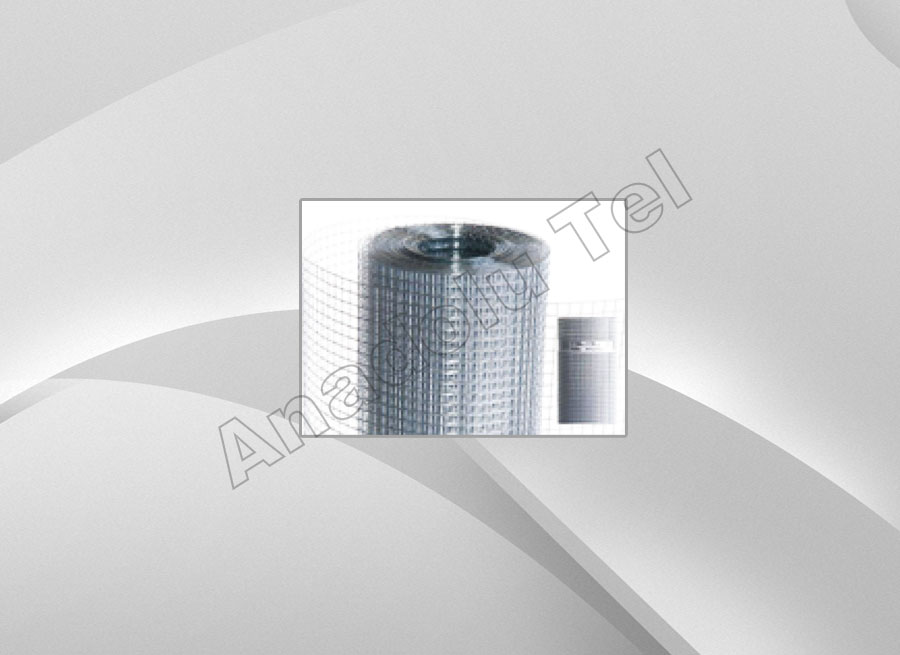

Visual Pictures :
Technical information :
Galvanized spot welding wires; The black wires are first punched, then hot-dip galvanized.
Post-hot dip coating rate is minimum 90gr/m2. In addition, galvanized coating rates up to 450gr/m2 are specially imported.
Technical Information for Brass (Yellow), Copper and Bronze Screen Wires : |
Eye Pitch (mm) |
Wire Thickness (mm) |
Roll Dimensions (mt) |
6.3 x 6.3 |
0.55 |
1 x 30 |
10.6 x 10.6 |
0.90 |
1 x 30 |
12.7 x 12.7 |
0.81 |
1 x 30 |
12.7 x 12.7 |
1.00 |
1 x 30 |
12.7 x 12.7 |
1.45 |
1 x 30 |
16 x 16 |
1.20 |
1 x 30 |
19 x 19 |
1.05 |
1 x 30 |
19 x 19 |
1.45 |
1 x 30 |
19 x 19 |
2.00 |
1 x 30 |
25 x 25 |
2.05 |
1 x 30 |
Roll width; There are also 120 cm and 150 cm products. Additionally, it can be imported specifically with the features you want.
Usage areas:
‡ In ventilation systems
‡ In heating, cooling and air conditioning systems
‡ On the front panel faces of heating stoves
‡ In the filter industry
‡ In the agriculture and livestock sector
‡ It is used in multi-purpose works such as various decoration etc.
