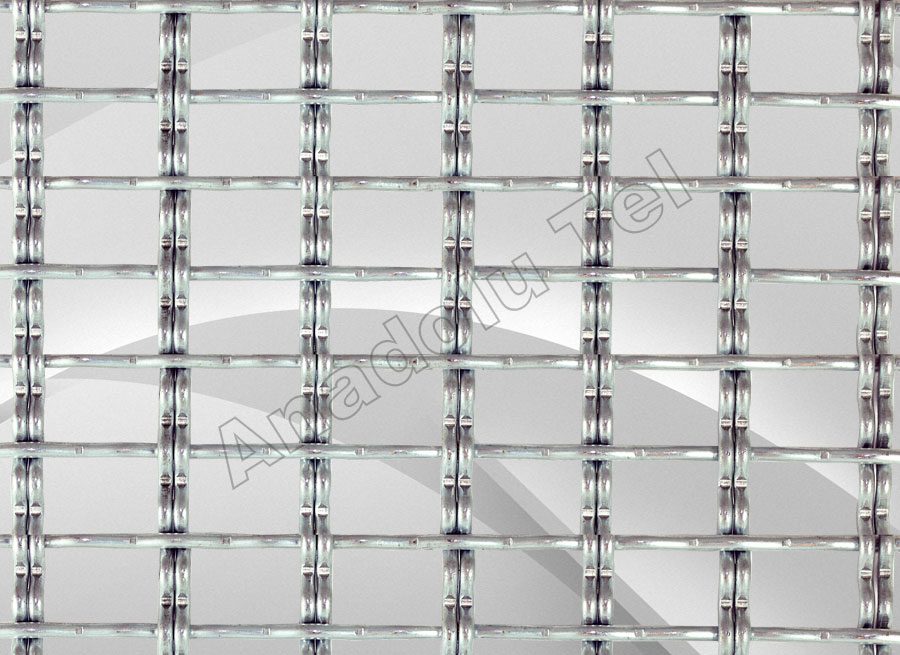

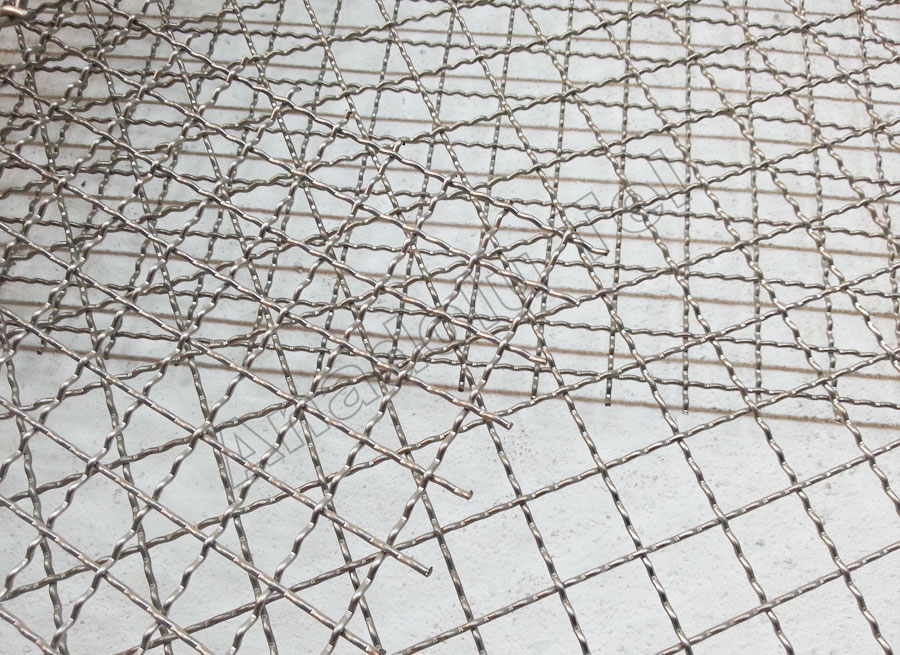

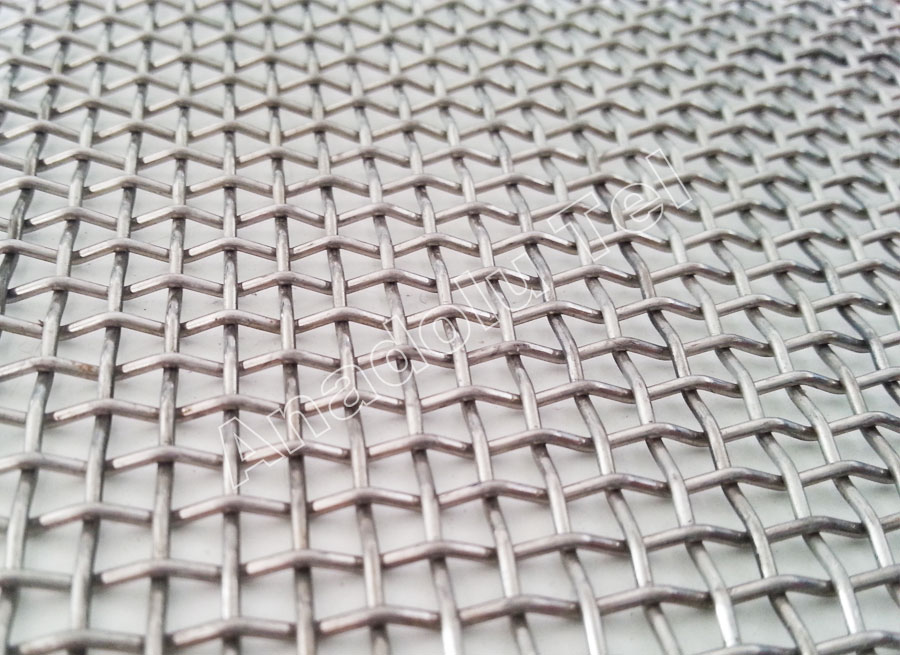

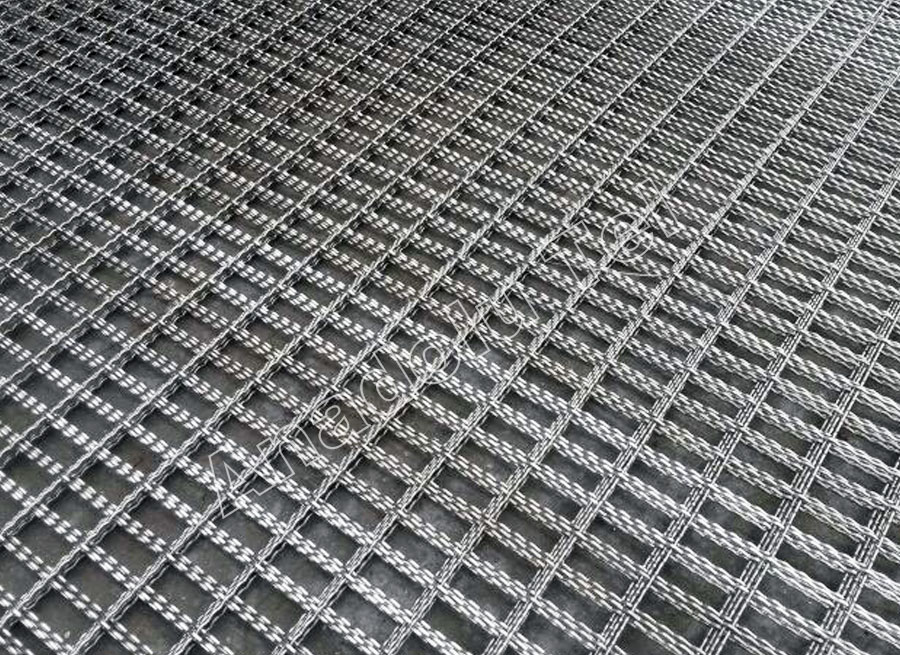

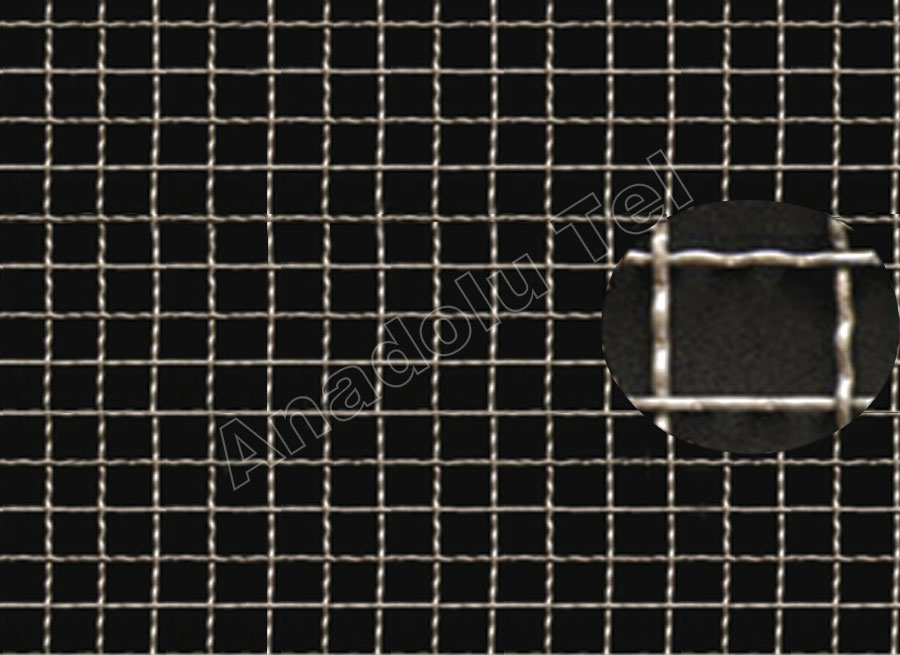

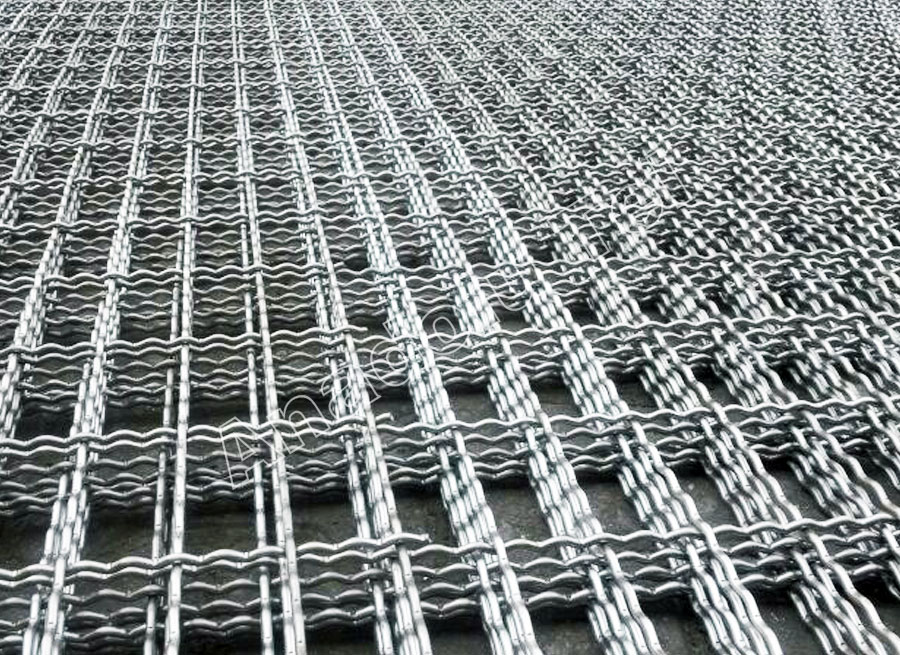

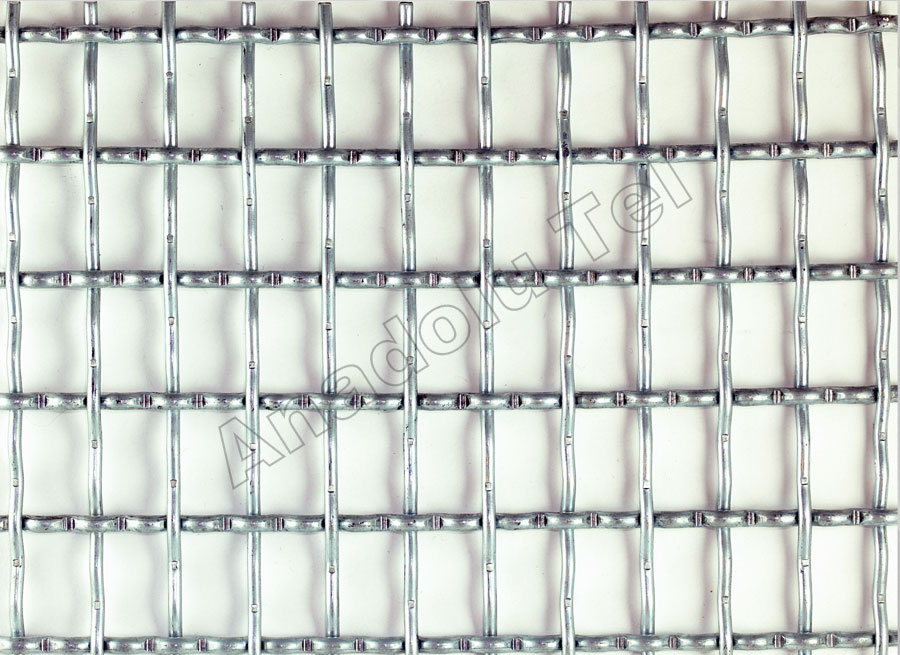

| Steel Sieves and Gauze Wires |
-

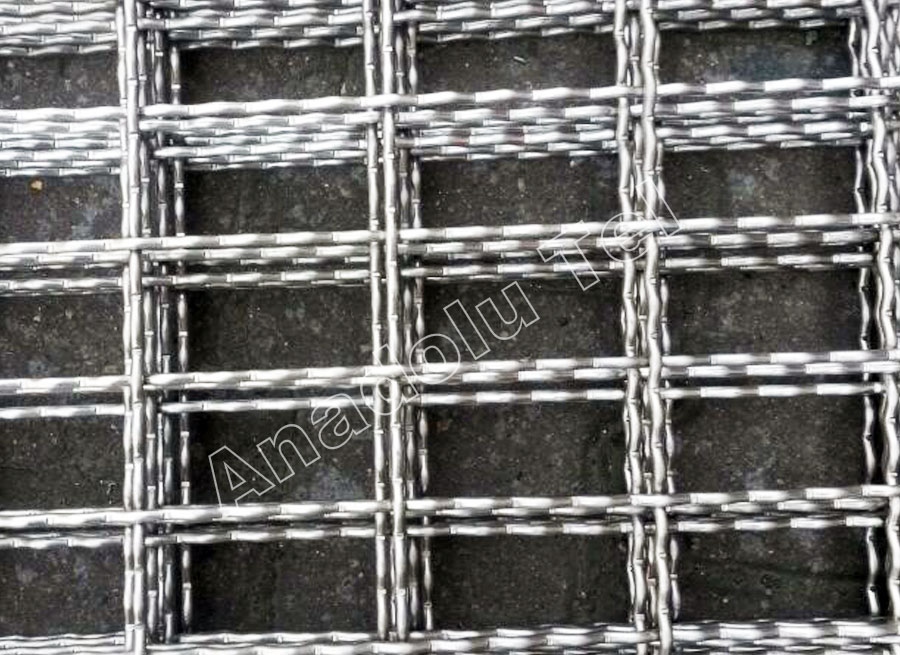

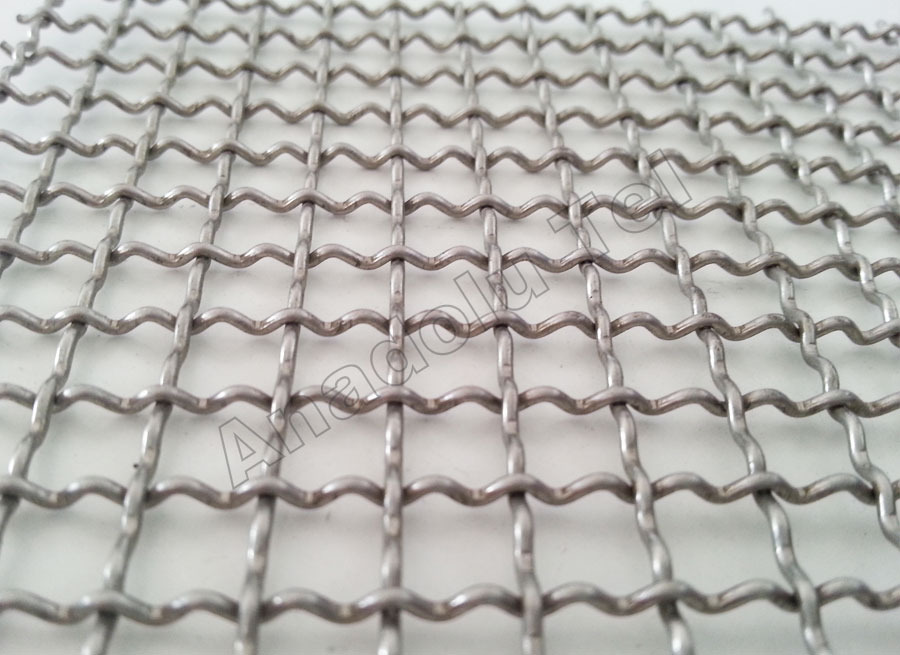

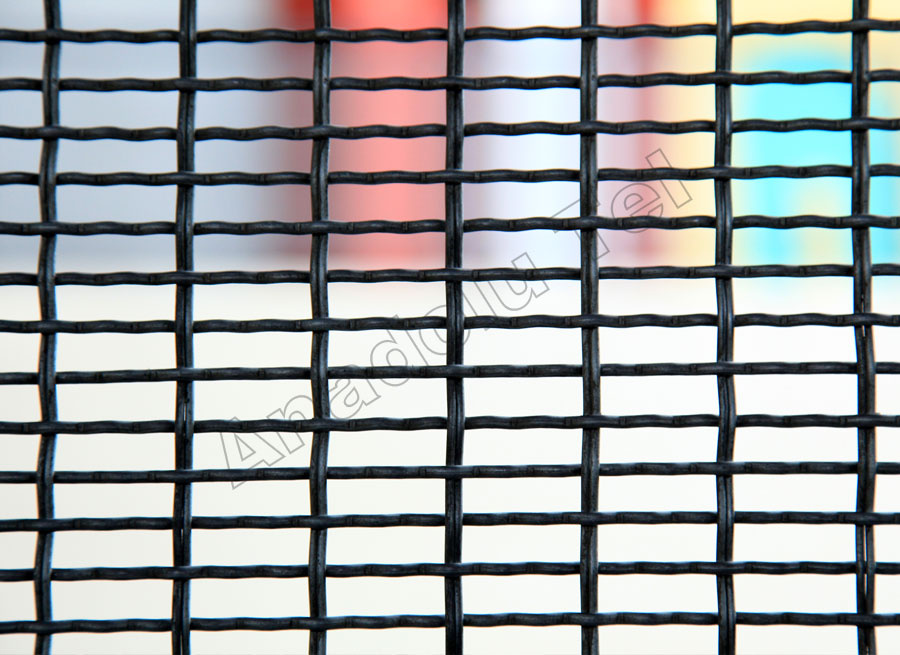

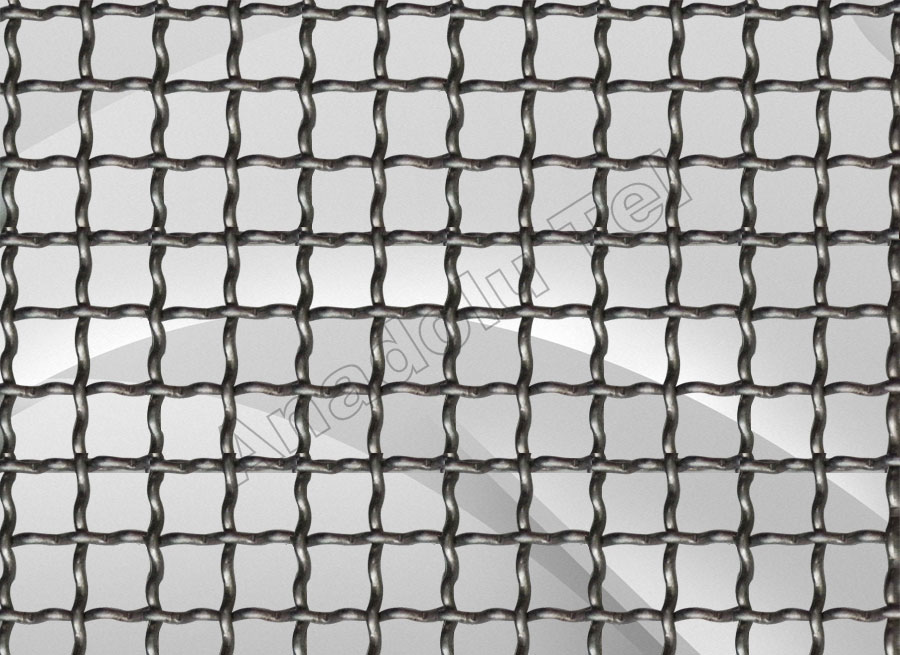

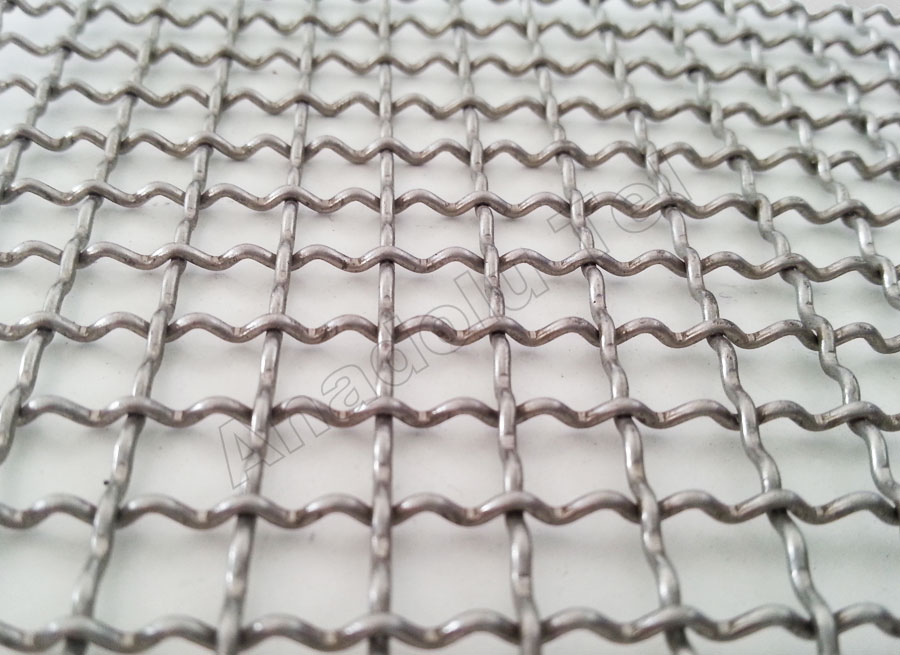

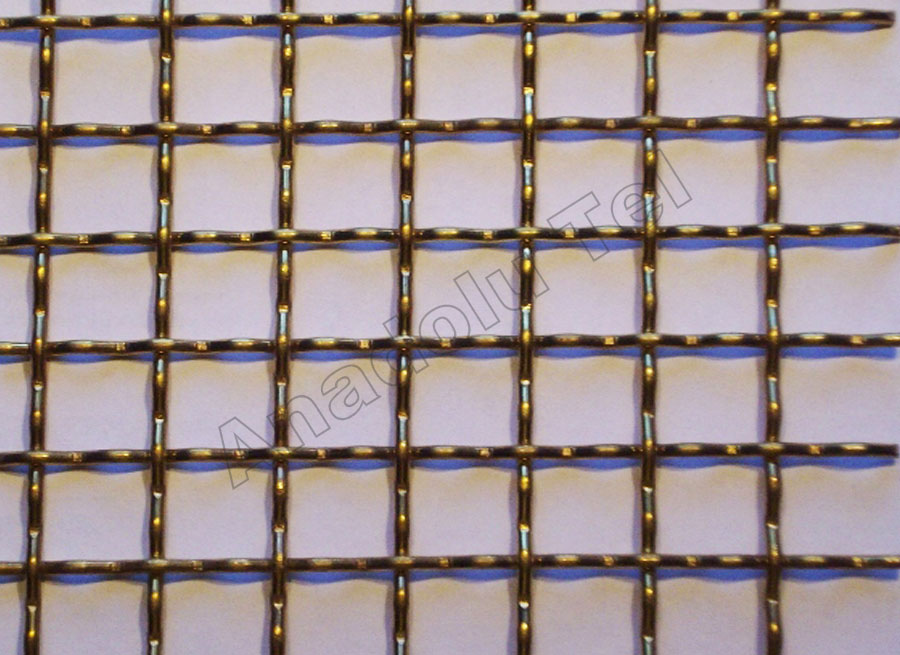

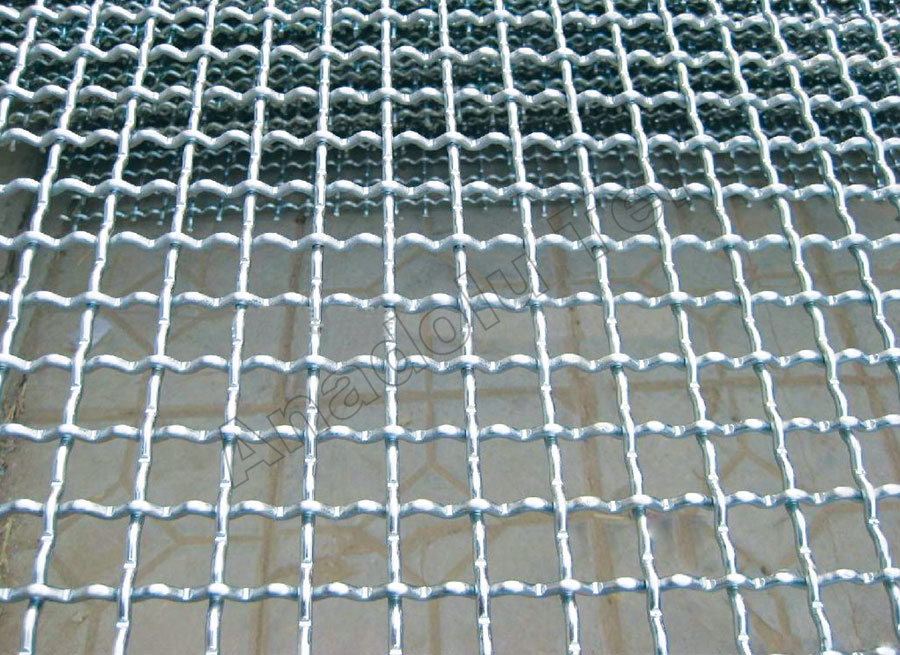

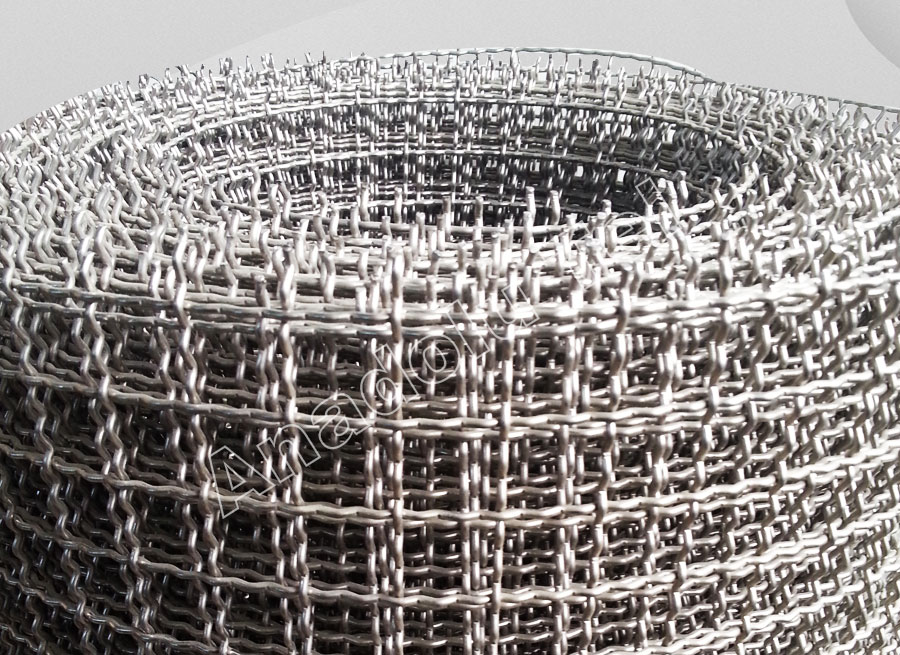

We can manufacture stainless cage wires in any mesh size, wire thickness and size you want.

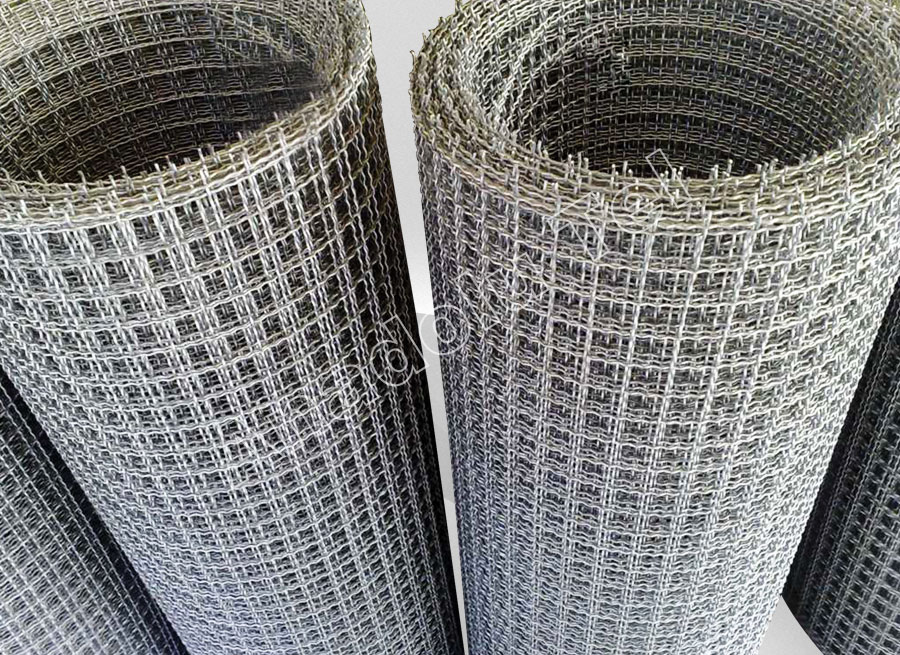

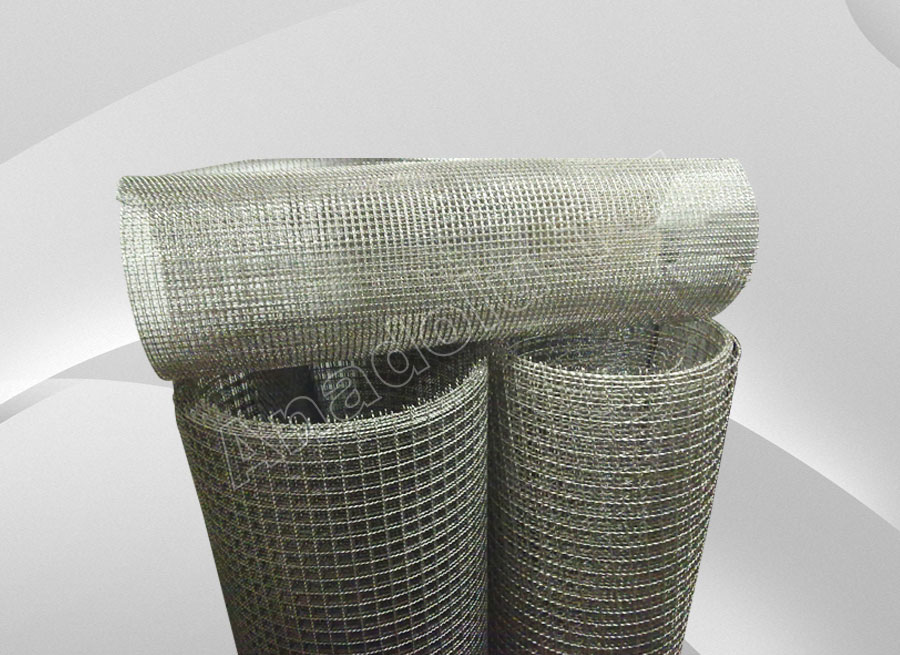

Eye Pitch (mm) Wire Thickness (mm) Rulo Boyutları (m) 4*4 1.00 1*30 5*5 1.00 1*30 6*6 1.20 1*30 8*8 1.50 1*30 10*10 1.50 1*30 10*10 2.00 1*30 12*12 1.50 1*30 15*15 2.50 1*30 20*20 2.00 1*30 25*25 2.50 1*30 30*30 3.00 1*30
-
Chemical Compositions of Stainless Steels
Quality C Mn P S Si Cr Ni AISI K304 Max. 0.08 2.00 0.045 0.030 1.00 18-20 8-10.5 304 K309 Max. 0.20 2.00 0.045 0.030 1.00 22-24 12-15 309 K310 Max. 0.25 2.00 0.045 0.030 1.50 24-26 19-22 310 K314 Max. 0.25 2.00 0.045 0.030 1.50-3.00 23-26 19-22 314 K316 Max. 0.06 2.00 0.045 0.030 1.00 16-18 10-14 316 K321 Max. 0.08 2.00 0.045 0.030 1.00 17-19 9-12 321 K304L Max. 0.03 2.00 0.045 0.030 1.00 18-20 10-12.5 304L K316L Max. 0.03 2.00 0.045 0.030 1.00 16-18 12-15 316L K316Ti Max. 0.08 2.00 0.045 0.030 1.00 16-18 10-14 316Ti K430 Max. 0.12 1.00 0.040 0.030 Max. 0.75 16-18 - 430
K304 is the basic variety of stainless steel. Provides high oxidation resistance up to 450º C. Mechanical resistance and friction resistance are very good. It is used in the chemical, petro-chemical, food, kitchen, automotive, medical industries and in the production of boilers and heat exchangers.
K304L is the low carbon version of K304. It has no friction resistance at temperatures above 500º C. It has high oxidation resistance up to 450º C. It is used in the chemical, mining, oil industry and chemical storage tanks. It is generally used at temperatures below 400º C.
K309 has the ability to operate for a long time at high temperatures of 920 ºC.
K310 has excellent resistance to high temperatures of 1070 ºC. It is resistant to thermal shock, heating and cooling repetitions. Its mechanical and corrosion resistance is slightly better than K304. It is used in industrial furnace parts, fuel and special pipelines, paint industry, and oil refining.
K314 is the most durable material with increased resistance to 1200 ºC oxidation and heat compared to K310 quality.
Conveyor belts to be used in high temperature environments, such as in industrial ovens, are produced from K310 and K314 quality wires. K314 quality wires have the ability to work at temperatures up to 1200 ºC.
Conveyor belts made of K314 quality wires are used in the food industry as well as in the production of BTB facade cladding mosaics.
K316 provides high oxidation resistance up to 650 ºC, mechanical rupture and shrinkage strength, and also high oxidation resistance due to the molybdenum it contains. It is used in the chemical, petro-chemical, food, textile, paper industries, marine and industrial atmosphere conditions.
K316L is the low carbon version of K316. It does not have friction resistance at temperatures above 500ºC. It has high oxidation resistance up to 450ºC.
It is used in the chemical, petro-chemical, food, textile, paper industry, marine and industrial atmosphere conditions. It is generally used at temperatures below 450ºC.
K316TI general corrosion resistance is very similar to K316. It has high temperature oxidation resistance up to 650ºC. It is used in the chemical, petro-chemical, textile and paper industries.
K312 provides intercrystalline corrosion resistance with the addition of Ti. It is very resistant to high temperatures.
It is used in resistance and exhaust pipes, manifolds, aircraft parts, and boiler parts of the chemical industry.
K409 is resistant to high heat and corrosion. It is used in the manufacturing of exhaust pipes.
K430TI provides optimum corrosion resistance with the addition of TI. Its thermal conductivity is better than K304. Another feature that distinguishes it from K304, K310, K314 and K316 is that K430Tİ holds a magnet.
It is used in hot water systems, hot water holding tanks and the sugar industry.
-
Stainless cage wires and stainless steel wires are a popular product used in many industrial sectors.
‡ In modern and quarries
‡ In the machinery industry
‡ Animal shelters and manufacturing
‡ In ventilation, air conditioning and grille manufacturing
‡ In the kitchenware industry
‡ In the chemical and pharmaceutical industry
‡ Automotive
‡ In exterior cladding
‡ In areas requiring all kinds of protection
