General Information:

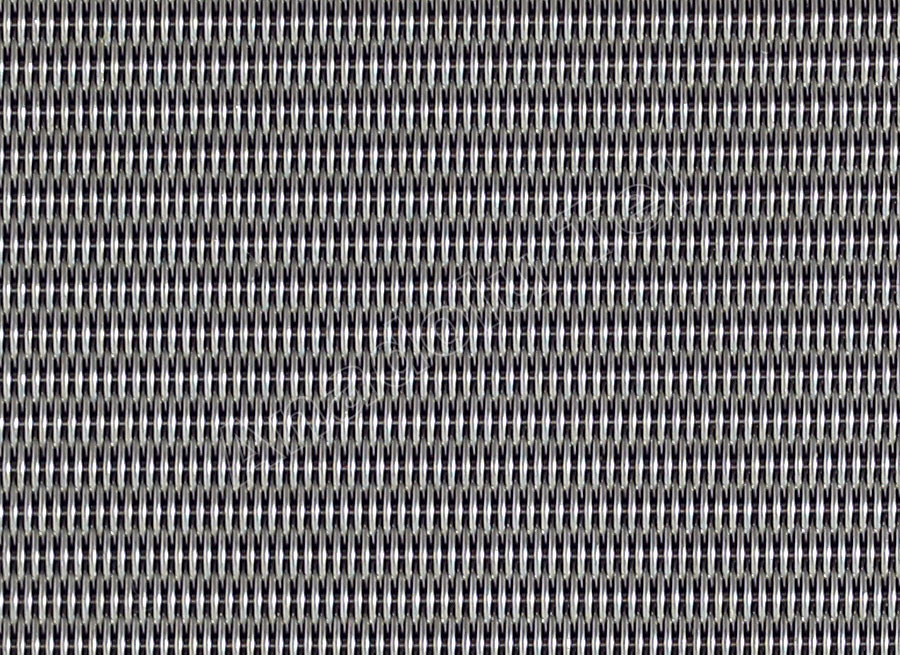

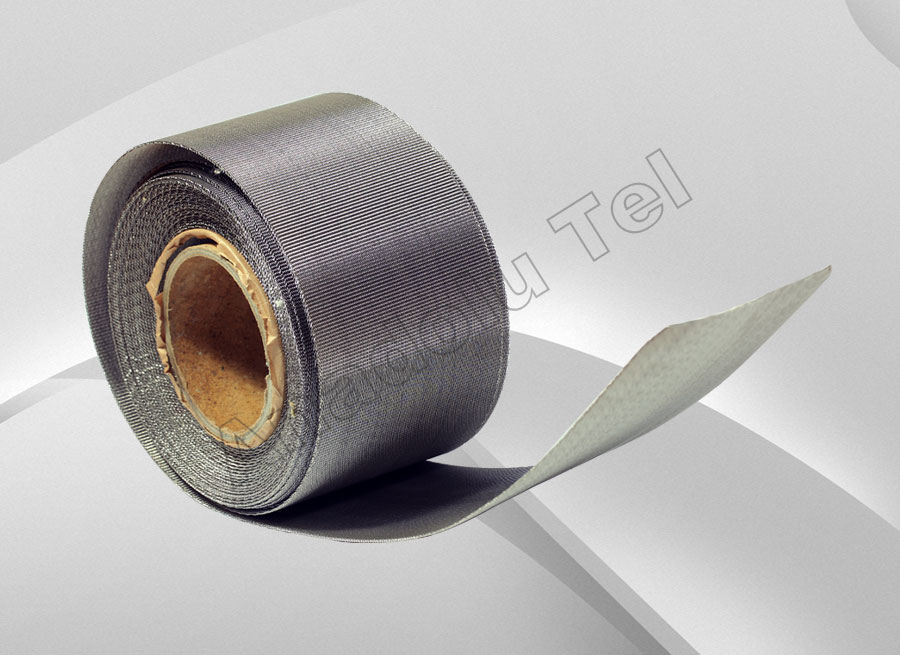

Stainless band filters are woven from 304 quality wires with a double braided system (plain dush…). Maximum wire thicknesses are used. It has high resistance to heat and pressure.
Usage areas:
It is used for filtration purposes in industrial areas to obtain high quality products. It is used in the plastic industry, synthetic yarn industry and sack factories.
|
Technical Table (Double Braided Wires) |
| Mesh |
Wire Thickness (mm) |
Roll Length Dimensions |
| 260 x 40 |
0,15 x 0,27 |
10 mt |
| 260 x 40 |
0,15 x 0,27 |
10 mt |
| 260 x 40 |
0,15 x 0,27 |
10 mt |
| 260 x 40 |
0,15 x 0,27 |
10 mt |
| 132 x 17 |
0,32 x 0,45 |
10 mt |
| 132 x 17 |
0,32 x 0,45 |
10 mt |
| 132 x 17 |
0,32 x 0,45 |
10 mt |
| 132 x 17 |
0,32 x 0,45 |
10 mt |
| 152 x 24 |
0,27 x 0,40 |
10 mt |
| 152 x 24 |
0,27 x 0,40 |
10 mt |
| 78 x 15 |
0,40 x 0,50 |
10 mt |
| 78 x 15 |
0,40 x 0,50 |
10 mt |
|
