Stainless Wire Mesh (Double) Knitting Wires

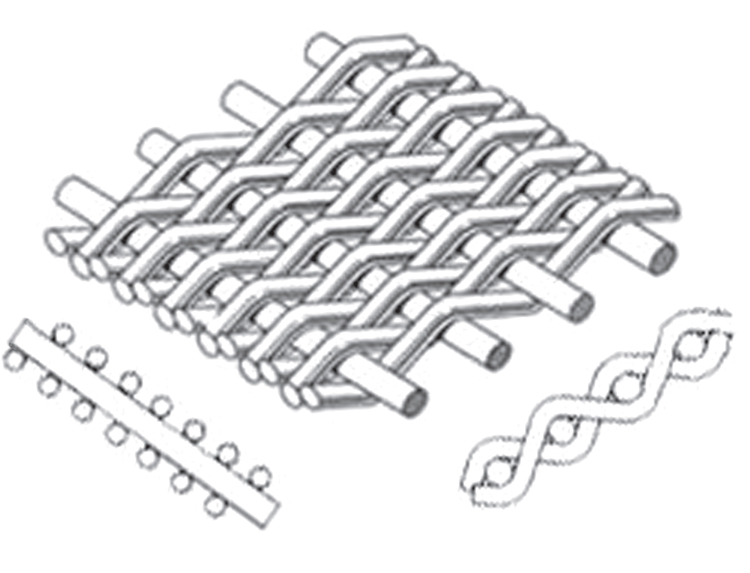

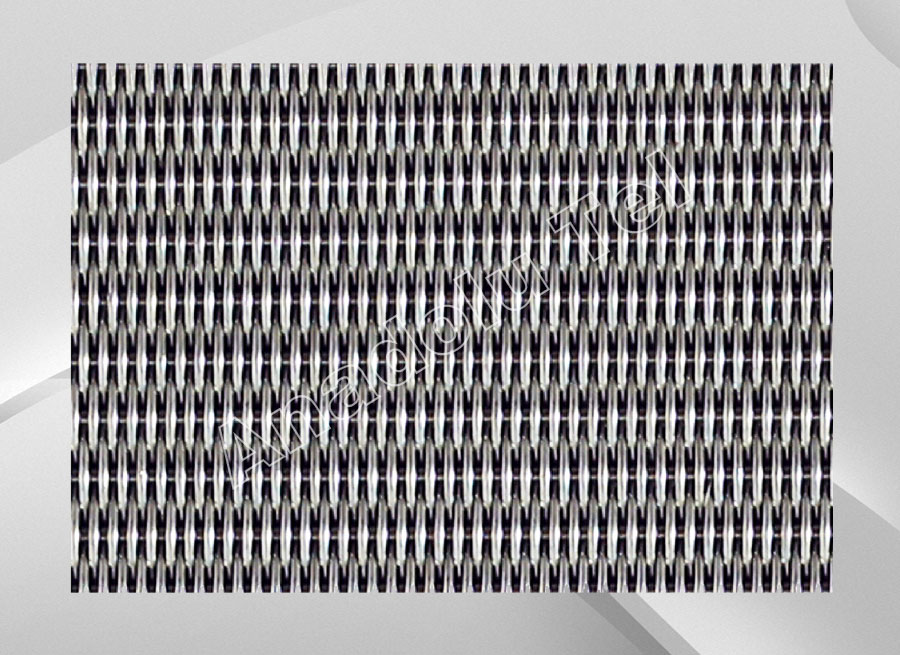

This mesh system in stainless filter and strainer wires is known as. Its other name is Dutch braid. In this system, the strings are arranged straight in one direction, and the strings in the other direction pass from one bottom to the other.

The strength of the double knitting system is more durable than that of the plain knitting system. The reason for this is that in the double braided system, weaving is done with thicker wire. In this way, the ones it is used in are processed in the longer term.

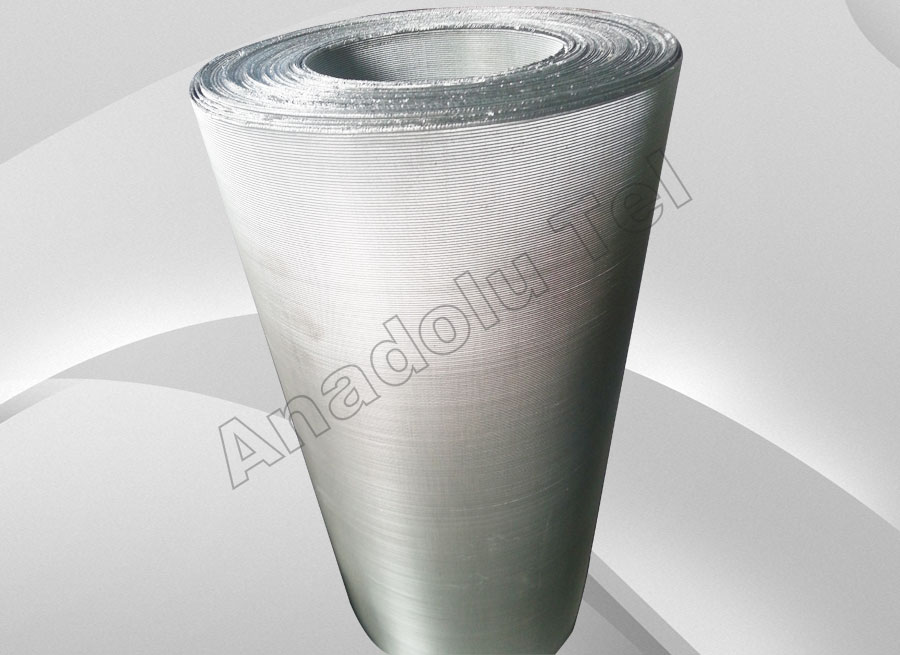

Standard roll sizes are 1mt * 30mt.
It is also specially imported in the roll sizes you want.

Technical Table (Double Braided Wires)
Mesh	Wire Thickness (mm)	Delik Aralığı (micron)
12 x 64	0,58 x 0,43	260
14 x 88	0,50 x 0,33	150
26 x 140	0,40 x 0,20	135
24 x 110	0,35 x 0,25	110
30 x 150	0,25 x 0,18	90
40 x 200	0,18 x 0,14	70
50 x 250	0,14 x 0,11	50
60 x 300	0,14 x 0,09	45
80 x 780	0,10 x 0,07	30
100 x 900	0,10 x 0,063	20
200 x 1400	0,07 x 0,04	10
325 x 2300	0,035 x 0,025	5

Technical Table (Double Braided Wires)
